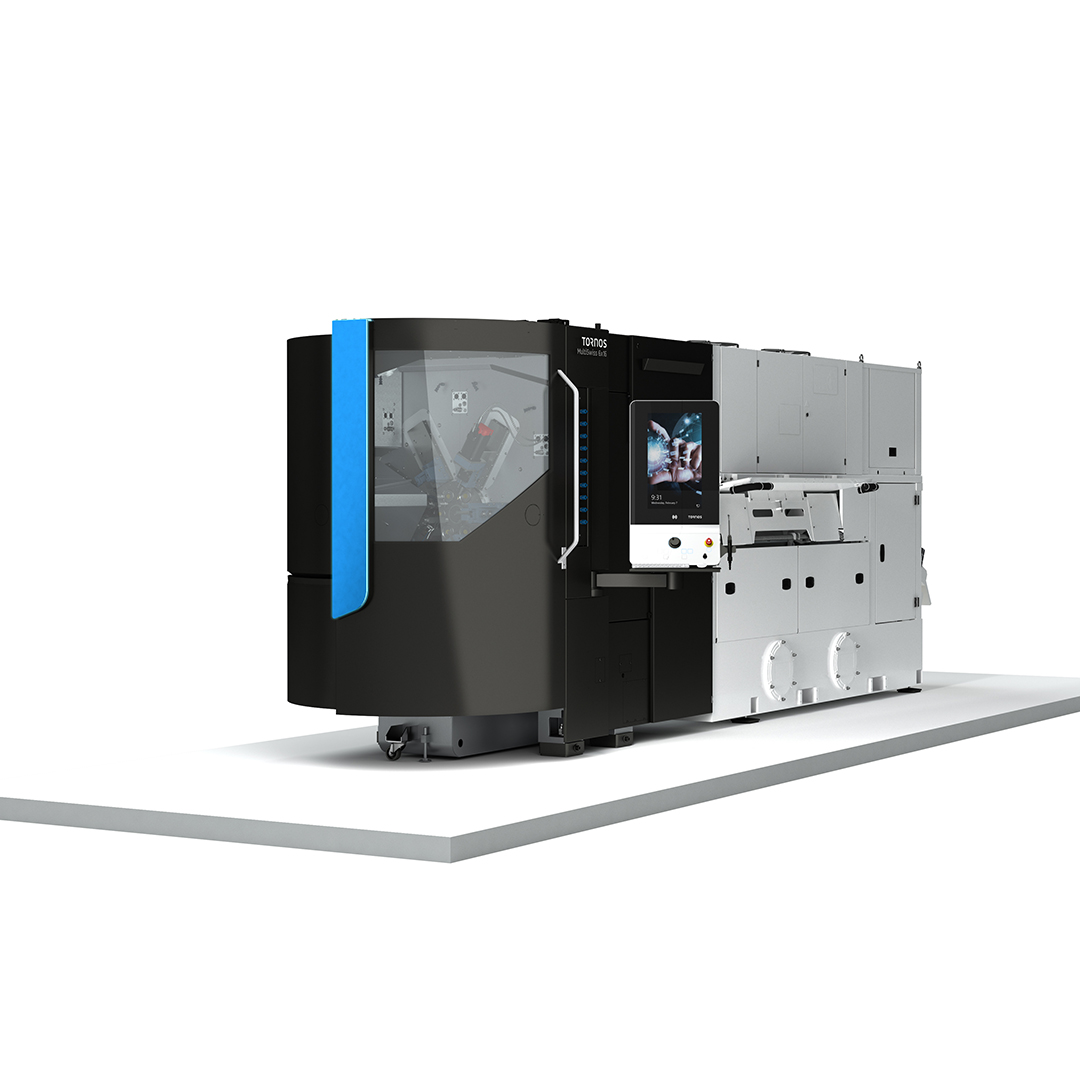

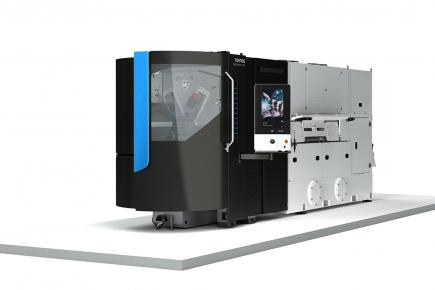

Special offer - Tornos Select
MultiSwiss 6x16 - i52456
| Reference | i52456 | |
|---|---|---|
| Year | 2023 | |
| Price | On request | |
| Warranty | 6 months | |
| Delivery | Ex works Germany |
| Technical specifications MultiSwiss | 6x16 | |
|---|---|---|
| Bar passage |
mm |
4-16 |
| Max. part length |
mm |
40 |
| Max. remnant length |
mm |
70 |
| Max. diameter with chuck system |
mm |
- |
| Max. part length with chuck system |
mm |
- |
| Max. main spindle speed |
rpm |
8.000 |
| Main spindle power |
kW |
5.60 |
| Main spindle torque |
Nm |
8 |
| Max. pickoff spindle speed |
rpm |
8.000 |
| Pickoff spindle motor power |
kW |
5.00 |
| Pickoff spindle motor torque |
Nm |
8.00 |
| Main spindle Z stroke |
mm |
50 |
| Pickoff spindle Z stroke |
mm |
150 |
| Number of linear axes | 14 | |
| Number of Y axis | 1 | |
| Number of rotating axes (C Axis) | 6 + 1 |
INTERESTED? GET IN TOUCH WITH US TODAY!
This offer is subject to conditions and availability. Please contact us for more details. All descriptions and specifications on this page should be considered as nonbinding and may include optional equipment that is not part of the standard configuration.
Subject to prior sales. This prices apply only to the displayed machines, which are fully assembled, waiting in stock. Offer valid until stock runs out !
