Special offer - Tornos Select

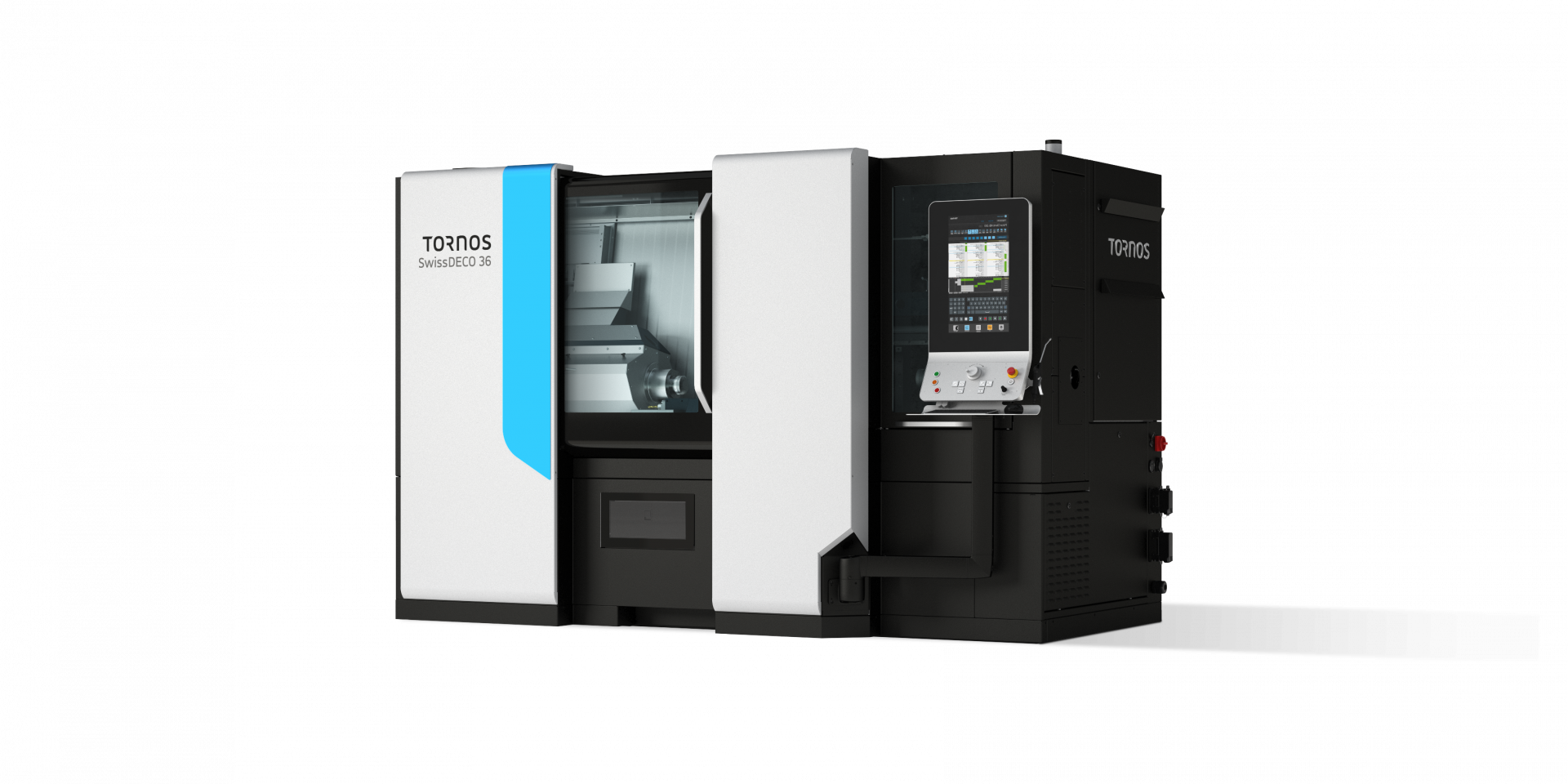

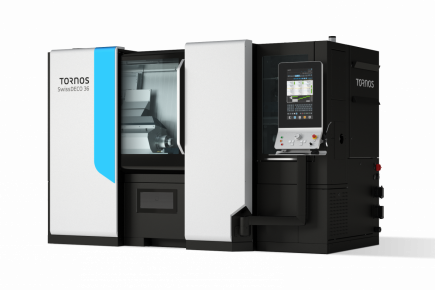

SwissDECO 36 G - double platen | Ref. i52005
| Reference | i52005 | |
|---|---|---|
| Year | 2018 | |
| Price | On request | |
| Warranty | 6 months |
| SwissDECO | 36 | |
|---|---|---|
|
Max. bar capacity |
mm |
36 |
| Number of linear axes | 9 | |
| Number of C axes | 2 | |
| B-Axis | - | |
|
Number of independant tool system |
3 | |
|
Number of tool positions |
38 | |
|
Positions for rotating tools |
27 |
EQUIPMENT
- Motorized guidebush
- 2x Adapter for F42 collets (no.76-99)
- 2x Plate for 3 16x16 mm turning tools
- 2x 2 fixed frontwork tool support block
- S11 front tool support drive
- 6x Ø41.5 mm drilling-milling spindle
- HF Ø22 and/or HF Ø25 spindle adapter
- Double frequency converter
- Plate for 4 16x16 mm turning tools
- Double radial drilling-milling unit
- Tool breakage sensor
- Part transport belt
- High pressure preparation
- Preparation for high pressure pump 1
- Preparation for high pressure pump 2
- 120 bar high pressure pump
- TISIS Bundle Industry 4.0 Pilot
- Oil spray extraction device
- Automatic fire extinguishing device
- Fire fighting damper
- EasyFluid
- Paper band filtration
- Cooling unit
Tornos Select is valid only for Europe and Switzerland. Visitors from other regions should contact us directly about other special promotions.
INTERESTED? GET IN TOUCH WITH US TODAY!
This offer is subject to conditions and availability. Please contact us for more details. All descriptions and specifications on this page should be considered as nonbinding and may include optional equipment that is not part of the standard configuration.
Subject to prior sales. These prices apply only to the displayed machines, which are fully assembled, waiting in stock. Offer valid until 31.03.2026.
