Special offer - Tornos Select

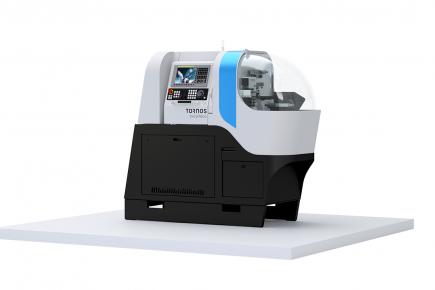

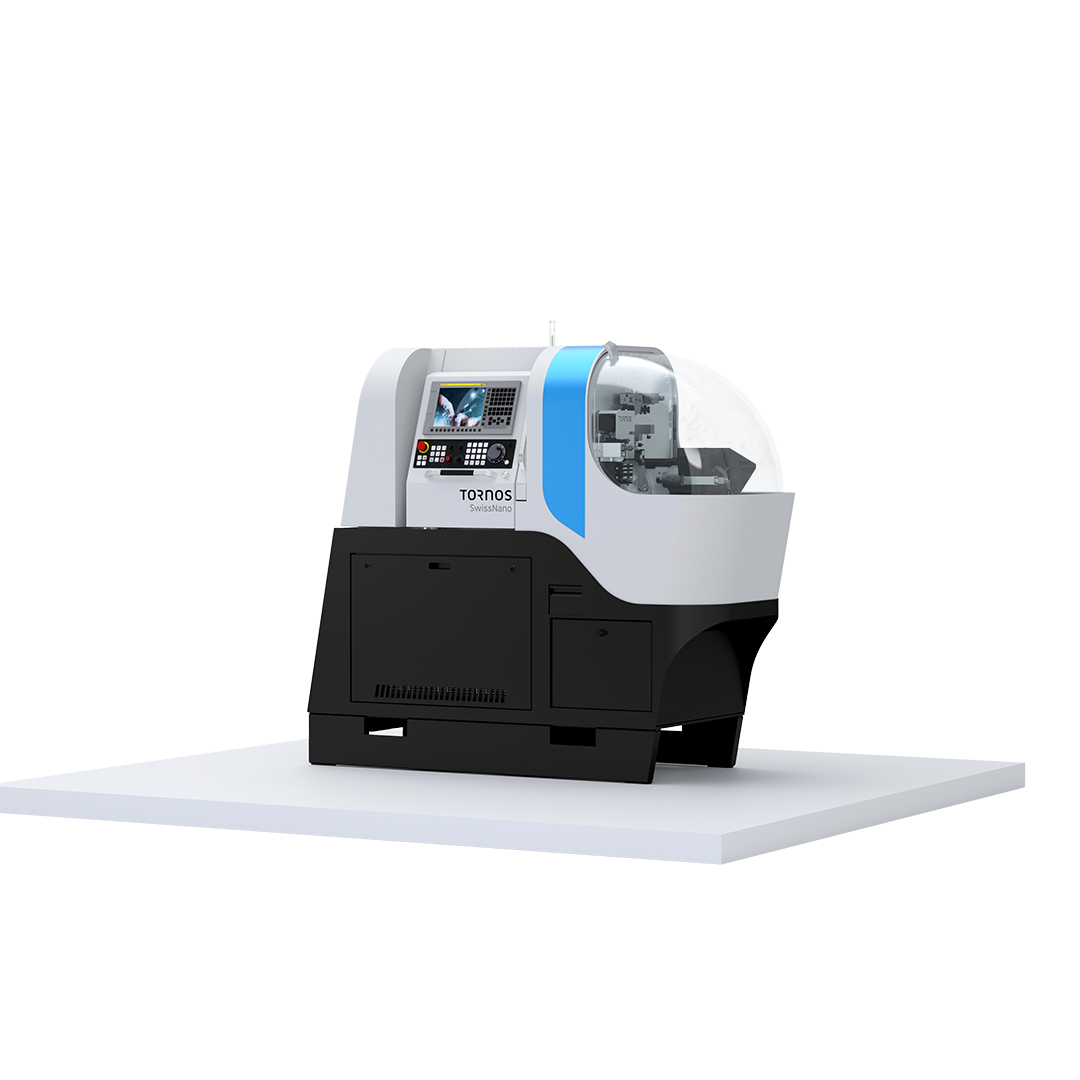

SwissNano 7 - i52352
| Reference | i52352 | |
|---|---|---|
| Year | 2022 | |
| Price | On request | |
| Warranty | 6 months | |
| Delivery | Ex works Switzerland |
| SwissNano | 7 | |
|---|---|---|
|
Maximum diameter |
mm |
7 |
|
Number of linear axes |
6 | |
| Number of C axes | 2 | |
|
Number of independent tool systems |
2 | |
|
Total number of tool positions |
12 | |
|
Position for rotating tools |
4 |
Equipement :
- 1x LNS Watch Industry bar feeder 112 CNC 3m
- 1x Guide bush-less kit
- 1x Synchronous motor guide bush
- 2x Plate for 3 turning tools 8x8mm
- 1x Plate 4 turning tools 3x 8x8 / 1x 12x12
- 1x Front tool holder main slide 3 pos. ER11
- 1x Rotat drill/mill attach spindle ER11
- 1x Set of spacers tool offset live tools
- 1x Support block with 4 bores Ø 16 mm
- 1x Support block 2x HF Ø22mm + 1x Ø16mm
- 2x High frequency spindle Ø22mm - 60'000rpm
- 2x Frequency converter for HF spindle
- 1x Adaptation HP for F10 collet max. Ø4
- 1x Motorization S41 for rotat tools
- 1x Tool break detector type MINI-DETECTOR
- 1x High pressure pump 20-60 bar
- 1x WS2 1000 oil mist collector
- 1x Front filtration tray
- 1x Long type addi oil tray capacity 80l
INTERESTED? GET IN TOUCH WITH US TODAY!
This offer is subject to conditions and availability. Please contact us for more details. All descriptions and specifications on this page should be considered as nonbinding and may include optional equipment that is not part of the standard configuration.
Subject to prior sales. This prices apply only to the displayed machines, which are fully assembled, waiting in stock. Offer valid until stock runs out !
